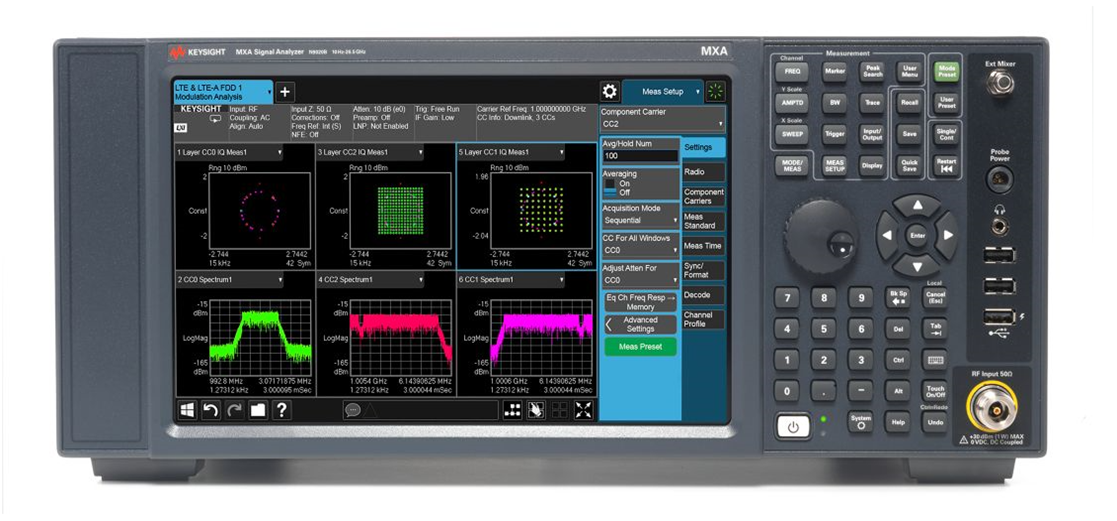

N9020B-RT1 高达 85 MHz 带宽的实时分析多点触控

1 GHz 时的 DANL-166 dBm

1 GHz 时，10 kHz 频偏处的相位噪声-114 dBc/Hz

1 GHz 时，30 kHz 频偏处的相位噪声-114 dBc/Hz

1 GHz 时，1 MHz 频偏处的相位噪声-136 dBc/Hz

总体幅度精度±0.23 dB

三阶截获（TOI），1 GHz 时+20 dBm

1 GHz 时的最大三阶动态范围116 dB

仪器类型频谱分析仪

应用——通用89600 VSA 软件

模拟解调

噪声系数

相位噪声

脉冲

实时频谱分析

MATLAB

 应用——蜂窝GSM/EDGE

LTE/LTE-Advanced

NB-IoT

W-CDMA/HSPA/HSPA+

Frequency range

N9020B-503 Frequency Range, 10 Hz to 3.6 GHz

N9020B-508 Frequency Range, 10 Hz to 8.4 GHz

N9020B-513 Frequency Range, 10 Hz to 13.6 GHz

N9020B-526 Frequency Range, 10 Hz to 26.5 GHz

N9020B-532 Frequency Range, 10 Hz to 32 GHz

N9020B-544 Frequency Range, 10 Hz to 44 GHz

N9020B-550 Frequency Range, 10 Hz to 50 GHz

 Preamplifier

N9020B-P03 Preamplifier, 3.6 GHz

N9020B-P08 Preamplifier, 8.4 GHz

N9020B-P13 Preamplifier, 13.6 GHz

N9020B-P26 Preamplifier, 26.5 GHz

N9020B-P32 Preamplifier, 32 GHz

N9020B-P44 Preamplifier, 44 GHz

N9020B-P50 Preamplifier, 50 GHz

 Bandwidth

N9020B-B1A Analysis Bandwidth, 125 MHz

N9020B-B1X Analysis Bandwidth, 160 Mhz

N9020B-B40 Analysis Bandwidth, 40 MHz

N9020B-B85 Analysis Bandwidth, 85 MHz

 Performance Options

N9020B-FT2 Frequency Mask Trigger, Optimum Detection License

N9020B-MPB Microwave Preselector Bypass

N9020B-NF2 Noise Floor Extension

N9020B-PFR Precision Frequency Reference

N9020B-TDS Time Domain Scan

N9020B-DP2 Deep Capture Memory

N9020B-EA3 Electronic Attenuator, 3.6 GHz, Upgrade

N9020B-EDP Enhanced Display Package License

N9020B-EMC Basic EMC Functionality License

N9020B-FP2 Fast Power, Up To 40 MHz Bandwidth

N9020B-FT1 Frequency Mask Trigger, Basic Detection License

N9020B-RBE Resolution Bandwidth Extended

 Baseband Inputs

N9020B-BBA I/Q Baseband Inputs, Analog

 Calibration Options

N9020B-AMG Calibration + Uncertainties + Guardbanding (Accredited)

N9020B-A6J ANSI Z540-1-1994 Calibration

N9020B-UK6 Commercial Calibration Certificate with Test Data

 Connection Options

N9020B-CR3 Connector, Wideband IF Output

N9020B-CRP Connector, Programmable Rear IF Output

N9020B-YAS Y-Axis Ouptut

 External Mixing

N9020B-EXM External Mixing

 Real time signal analysis

N9020B-RT1 Real-time analysis up to maximum available BW, basic detection license

N9020B-RT2 Real-time analysis up to maximum available BW, optimum detection, license

 Portable Packaging

N9020B-PRC Portable Configuration

 Security - PC features

N9020B-SF2 Security F
