主要特性与技术指标
-
Remote access and control of GPIB, USB and RS-232 instruments via LAN in one-box solution
-
Faster GPIB transfer rate of up to 1.2 MB/s
-
Supports 1000BASE-T (1 Gigabit)/100BASE-TX/10BASE-T LAN/Ethernet connection
-
Password-protected web interface for configuration
-

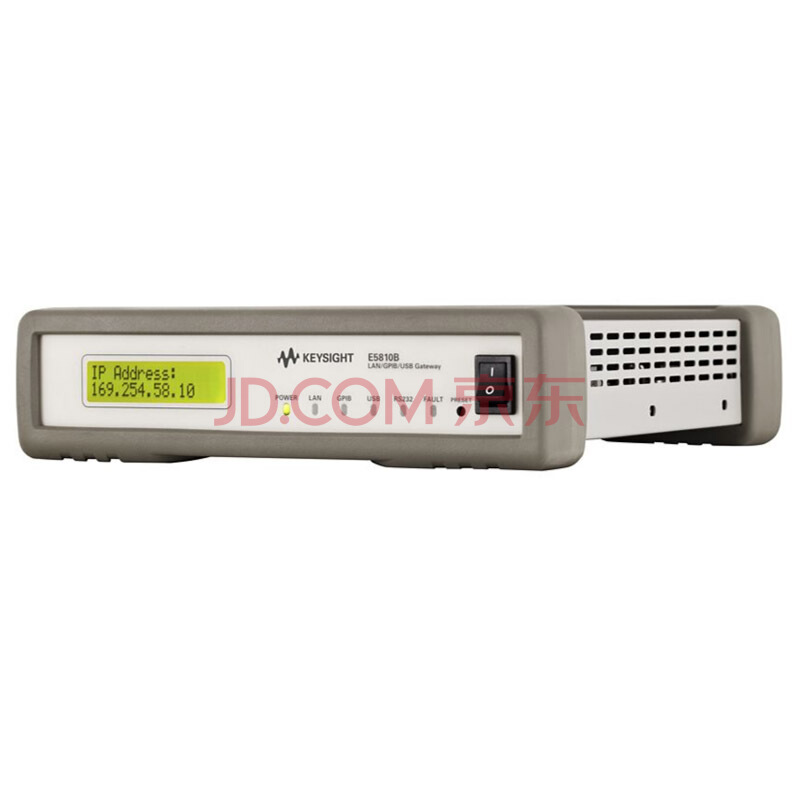

Built-in LCD display and Web browser for easy setup and use
-
Power switch for hard reset
描述

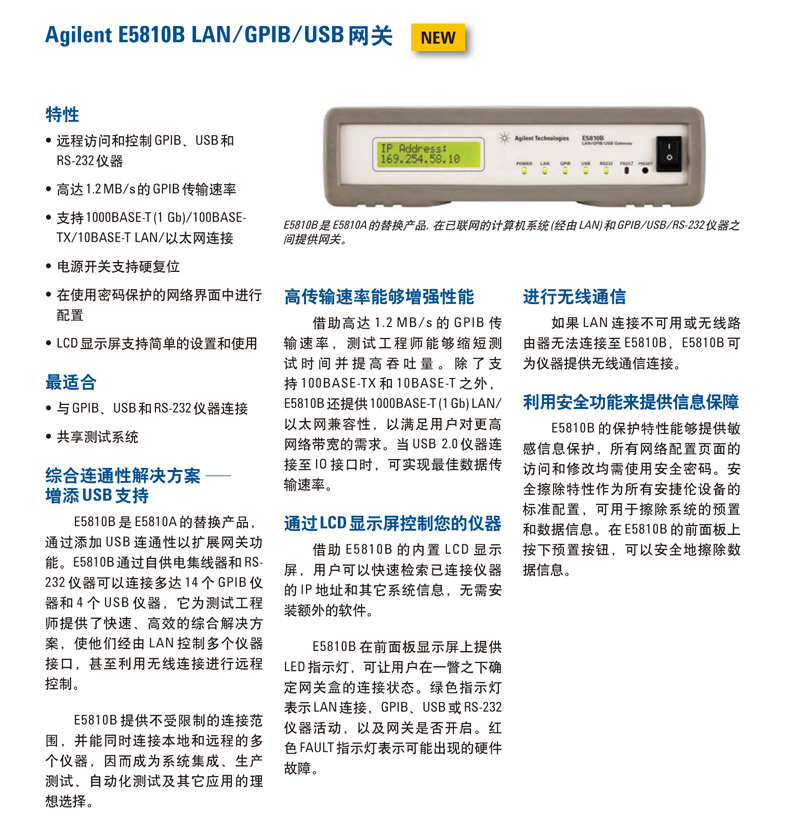

The E5810B is the next generation of the E5810A and provides a gateway between networked-equipped computer systems (using LAN) and GPIB, USB and RS-232 instruments in one-box connectivity solution. With this gateway, multiple users can share the instruments from different locations via a LAN (1000BASE-T(1Gigabit)/100BASE-TX/10BASE-T)

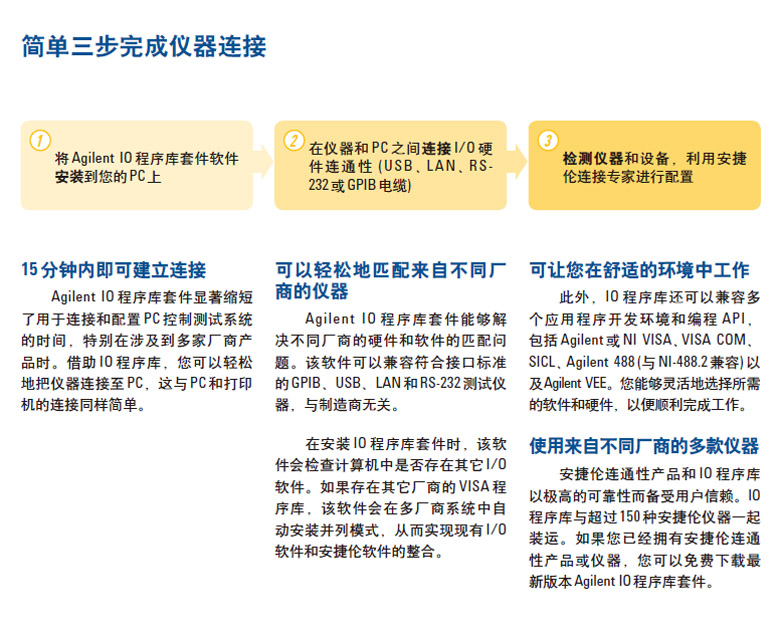

To quickly establish instrument connection on a PC, download and install Keysight IO Libraries Suite.Automate and perform data analysis on your test system easily with Keysight VEE Pro.
